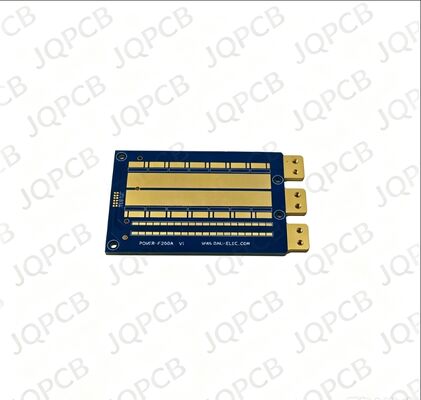

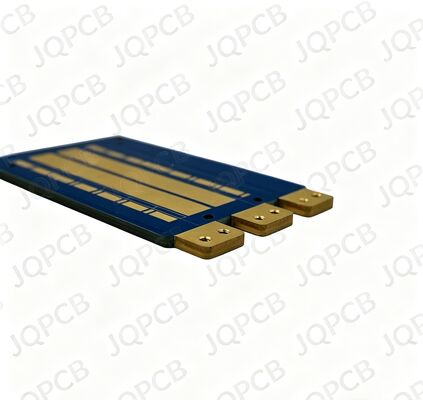

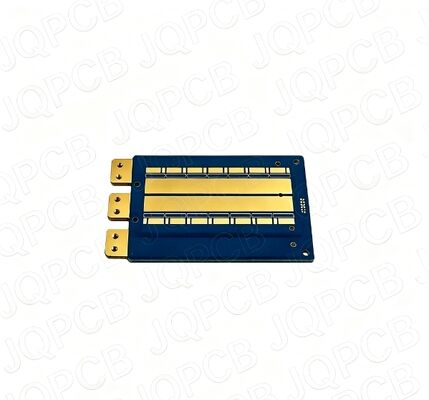

Busbar PCB (Heavy Copper Power PCB) supports up to 200A high current. Integrated busbar design replaces traditional copper bar, widely used in energy storage BMS, UPS, power inverters and lithium battery packs. Custom heavy copper, gold plated terminals available.
Busbar PCB, also known as heavy copper power PCB, is designed for high-current power applications. It integrates circuit traces and busbar structure on one PCB board, replacing traditional separate copper bars, saving assembly space and improving system reliability.
Our custom busbar PCB can support current up to 200A or higher. Copper thickness ranges from 3oz to 10oz. Surface finish options include ENIG, hard gold plating, HASL, OSP. We can make gold-plated terminals for reliable high-current connection.
Key FeaturesJQPCB provides one-stop custom PCB service. We accept prototype and mass production orders. Gerber files and specifications are welcomed for quotation. Strict IPC quality standard, fast lead time, reliable quality control.
Contact us for your custom busbar PCB requirement.
