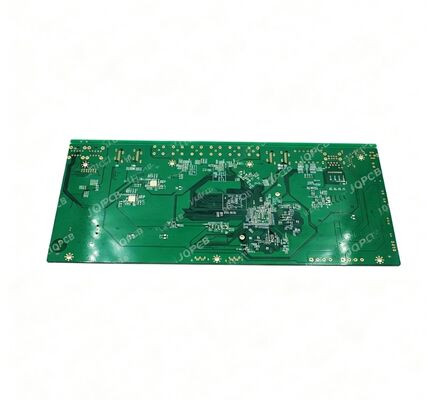

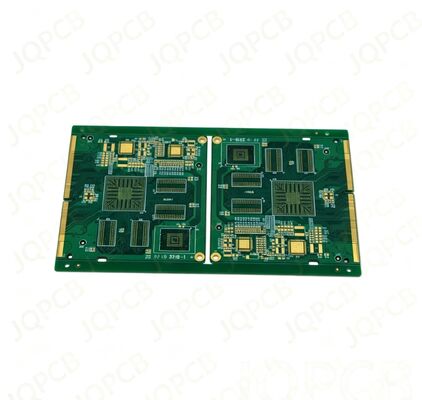

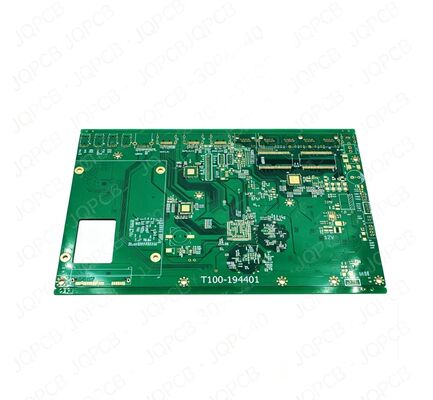

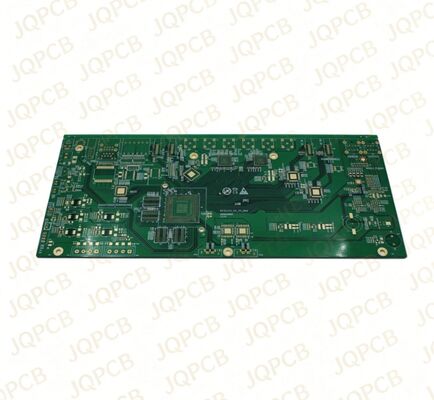

6 Layer PCB

Key Attributes
Brand Name: JQPCB
Model Number: 6L-PCB-1.6mm
Place of Origin: China
Certification: GB/T 19001-2016/IS0 9001:2015
Minimum Order Quantity: 1PCS
Price: negotiate
Supply Ability: 20000 Quadratmeter / Monat
Delivery Time: 5-15 Werktage, Eilbestellung möglich
Payment Terms: L/C,D/A,D/P,T/T
Standard Packaging: Vakuumverpackung + Antistatikbeutel, Trockenmittel, Temperaturanzeigekarte, Karton

Product Summary

6 Layer PCB Model: 6 Layer PCB Material: S1141,S1000,370HR Layer: 6 Layer Circuit Solder Mask Color: Green Silk Screen: white Finished Thickness: 1.6mm Copper Thickness: 1/1/1/1/1/1 0Z Surface Treatment: lmmersion Gold/OSP Min Trace/Space: 3mil(0.075mm)

Product Custom Attributes

Material:
FR4
Layer Count:
6 Layers
Finished Thickness:
1.6mm
Copper Weight:
1oz
Surface Finish:
Immersion Gold, OSP, HASL
Solder Mask Color:
Green, Black, Blue, Red
Min Line Width:
Spacing | 3mil
Min Hole Size:
0.15mm
Board Type:
Multilayer PCB
Application:
Electronics, Industrial Control
MOQ:
1 Piece
Product Description

6-layer PCB delivers superior technical performance compared with 4-layer PCB. Its inner layers are usually designed for power and ground planes for diverse electronic equipment and industrial applications, effectively reducing electromagnetic interference (EMI) and crosstalk.

6-layer printed circuit boards are widely adopted in PCs, laptops and data storage hardware such as hard disk drives. They are also applied in fire alarm systems to boost system stability.

Besides consumer electronics, 6-layer PCBs are commonly found in optical receivers, mobile communication modules, GPS equipment, industrial control units and cardiac monitoring medical devices.

A 6-layer PCB shares a similar basic structure with a 4-layer PCB, but it adds two extra copper layers plus corresponding dielectric materials. In the classic stackup structure, the 2nd and 5th layers serve as solid ground planes, while the remaining layers are dedicated signal layers.

6 Layer PCB Stackup

6 Layer PCB

6 Layer PCB

Basics of PCB Stackup

As high-speed circuits develop, PCB designs become increasingly complex. To avoid electrical interference, signal layers and power/ground planes must be separated, which brings multilayer PCB design.

Before multilayer PCB layout, engineers need to select PCB stackup based on circuit scale, board dimension and EMC (Electromagnetic Compatibility) requirements, to decide whether to adopt 4-layer, 6-layer or more layers. This is the core concept of multilayer board design.

Once layer count is confirmed, designers define layer sequence and signal routing allocation — this is PCB stackup selection. Stackup design is critical to PCB EMC performance. A well-designed 6-layer stackup can significantly mitigate EMI and crosstalk.

More layers do not always equal better performance. When defining a 6-layer stackup, multiple factors must be balanced. More layers facilitate wiring, yet raise production cost and manufacturing difficulty. For PCB fabricators like JQPCB, stackup symmetry is a key consideration during production. Layer selection needs comprehensive evaluation to reach optimal balance between performance and cost.

Experienced PCB designers analyze wiring bottlenecks after component pre-placement. They calculate the quantity and types of special signal lines (differential pairs, sensitive traces etc.) to confirm the number of signal layers, then define internal power layers according to power supply types, isolation and anti-interference demands. This workflow finalizes the full stackup of the circuit board.

Typical 6 Layer PCB Stackup Principles

After confirming layer quantity, reasonable layer ordering is essential. A standard 6-layer stackup follows these core rules:

  • The component top layer and soldering bottom layer are shielded by complete ground planes.
  • Avoid adjacent signal layers as much as possible.
  • All signal layers are placed next to ground planes where feasible.
  • Critical signals run adjacent to ground planes and do not cross split plane areas.

Stackup Editor Operation Tips

  • Right-click to run commands: Insert layer above / Insert layer below for adding layers (positive film or negative film). Use Move layer up / Move layer down to adjust layer sequence.
  • Double-click layer name for renaming. Standard naming: TOP, GND02, SIG03, SIG04, PWR05, BOTTOM for easy identification.
  • Set layer thickness based on stackup requirements.
  • Negative layer shrinkage parameters can be configured to meet design specifications.
  • Click OK to finish stackup setup.
  • Recommendation: Fabricate signal layers as positive films, power & ground layers as negative films. This reduces Gerber file size and improves design efficiency.

6 Layer PCB Design Guidelines

The final PCB design has to be manufacturable, otherwise the design will be invalid. JQPCB summarizes key guidelines for 6-layer PCB design:

  • Complete ground planes are placed right underneath component side and soldering side for shielding.
  • Prevent two signal layers from being directly adjacent.
  • All signal layers should be adjacent to ground planes as far as possible.
  • High-speed, high-frequency and clock critical signal layers require nearby ground planes.

Why Choose JQPCB for Your 6 Layer PCB?

JQPCB is a professional China manufacturer of 6-layer printed circuit boards. We support customized 6-layer PCB production with full in-house manufacturing workflow. Our reliable quality and competitive pricing bring you cost-effective multilayer PCB solutions. Send us your Gerber files for quotation anytime.
