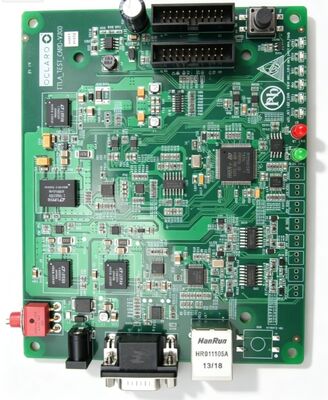

High Precision SMT PCBA for Consumer Electronics and Wearable Devices Compact Design

Surface Mount Technology (SMT) PCBA is engineered for consumer electronics requiring high component density in minimal board space. Utilizing advanced high-speed placement machines capable of mounting 01005 components with placement accuracy of ±0.05mm, this assembly delivers exceptional performance for smartphones, smartwatches, tablets, and wireless earbuds. The SMT process enables components that are 50-80% smaller than through-hole equivalents, maximizing board real estate while maintaining signal integrity. With dual-sided SMD placement capabilities and reflow soldering technology, this PCBA achieves production speeds of thousands of components per hour with consistent quality. Designed for high-volume manufacturing, it meets the demanding requirements of consumer electronics markets where speed, miniaturization, and cost efficiency are paramount.

1. SMT assembly process begins with solder paste printing, where a stainless steel stencil applies precise volumes of solder paste to the PCB pads.
2. High-speed pick-and-place machines then mount components onto the board with exceptional accuracy.
3. The assembled board proceeds through a reflow oven, where precisely controlled temperature profiles melt the solder paste to form reliable electrical and mechanical connections.
4. Automated Optical Inspection (AOI) systems verify solder joint quality, component placement accuracy, and polarity.
5. For double-sided assemblies, the process is repeated on the opposite side with high-temperature solder paste for the first side and low-temperature for the second.
6. X-ray inspection is employed for BGA and other hidden-joint components.
