6Layers Rigid-Flex PCB

Name: 6Layers Rigid-Flex PCB
Brand: Shenzhen Jiaqing Circuit Co., Ltd.
SKU: 6L-Rigid-Flex PCB
Price: Negotiable USD
Availability: InStock

Key Attributes

Brand Name: JQPCB

Model Number: 6L-Rigid-Flex PCB

Place of Origin: China

Certification: GB/T 19001-2016/IS0 9001:2015

Minimum Order Quantity: 1PCS

Price: negotiate

Supply Ability: 20000 Quadratmeter / Monat

Delivery Time: 5-15 Werktage, Eilbestellung möglich

Payment Terms: L/C,D/A,D/P,T/T

Standard Packaging: Vakuumverpackung + Antistatikbeutel, Trockenmittel, Temperaturanzeigekarte, Karton

Product Summary

Model :6Layers Rigid-Flex PCBMaterial : FR-4+FPC+PI Layer :2+2+2 Color : Green/WhiteFinished Thickness :FR4 1.0mm, FPC 0.15mm Copper Thickness:1oZ

Product Custom Attributes

Material:

FR4+FPC

Model:

6Layers Rigid-Flex

PCBMaterial:

FR-4+FPC+PI

Layer:

2+2+2

Thickness:

FR4 1.0mm, FPC 0.15mm

Copper Thickness:

1oZ

Product Description

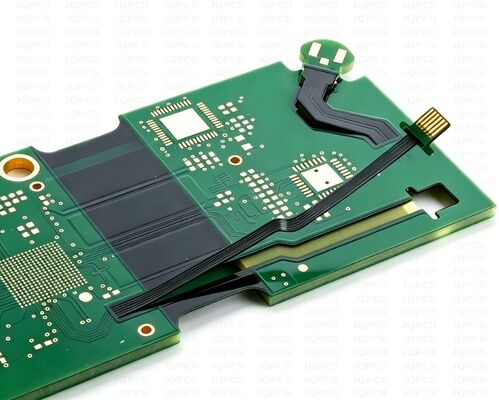

Rigid-Flex PCB

Integrated combination of rigid board and flexible FPC. The flexible section is bendable, eliminating connectors and saving internal space of devices.

Board Features

Flexible extension with Gold Finger for component interconnection
BGA pads & QFN chip pads, high-density routing
Bendable area for wiring inside compact housings

Typical Applications

Wearable devices: smart watches, TWS earbuds
Portable medical equipment
Industrial handheld terminals, camera modules
Compact consumer electronics

Rigid‑Flex PCB

6‑Layer Rigid‑Flex PCB (R‑FPCB) Material: FR4 + PI Structure: FR4 4L + FLEX 2L Finished Thickness: 0.2mm + 1.0mm Copper Thickness: 1 OZ Solder Mask Color: Green / White Surface Treatment: Immersion Gold Min Trace / Space: 4mil / 4mil Min Hole Size: Mechanical hole 0.15mm

High Power Thermal Management Rigid-Flex PCB with Heavy Copper and Aluminum Base

This high-power rigid-flex PCB is engineered for applications requiring efficient thermal management and high current-carrying capacity. The hybrid construction integrates heavy copper layers (up to 4oz) with an aluminum core base for superior heat dissipation in power electronics. The rigid ...

Ultra-Thin Wearable IoT Rigid-Flex PCB with 3D Packaging and Low Profile for Consumer Electronics

This ultra-thin rigid-flex PCB is specifically engineered for consumer electronics and IoT devices where space, weight, and form factor are critical constraints. With a total profile as thin as 0.3mm and flexible sections that can fold into 3D configurations, this board enables the miniaturization ...

High Speed Signal Integrity Rigid-Flex PCB with Controlled Impedance for 5G and Data Communication

This high-speed rigid-flex PCB is engineered for telecommunications and data communication applications requiring superior signal integrity at high frequencies. The hybrid construction integrates low-loss polyimide flex sections with advanced rigid materials (including Rogers and PTFE laminates) to ...

High Reliability Industrial Grade Rigid-Flex PCB with Extended Temperature Range for Automation

This industrial-grade rigid-flex PCB is engineered for demanding automation and control applications requiring extended temperature operation, vibration resistance, and long-term reliability. Manufactured to IPC-6013 Class 2/3 standards, this board operates reliably across -40°C to +125°C temperatur...

Aerospace Grade Rigid-Flex PCB MIL-PRF-50884 Compliant High Vibration Resistance Wide Temperature Range

This aerospace-grade rigid-flex PCB is manufactured to meet the demanding requirements of avionics, satellite systems, and communication equipment. Compliant with MIL-PRF-50884 and IPC-6013 Class 3 standards, this board delivers exceptional reliability in environments subject to extreme temperature ...
