RF Microwave High‑Frequency Mixed‑Pressure PCB

Key Attributes

Brand Name: Jiaqing Circuit

Place of Origin: China

Certification: ISO9001

Minimum Order Quantity: 1PCS

Price: negotiate

Supply Ability: Rush Order Available

Delivery Time: 15-30 Days

Payment Terms: L/C,D/A,D/P,T/T

Standard Packaging: Vacuum Packaging, Custom Special Packaging Available

Product Summary

JQPCB is a professional PCB manufacturer, providing high‑quality PCB prototype & circuit board fabrication with fast lead‑time for global customers.

Product Custom Attributes

Copper Weight (Outer Layers):

1oz – 20oz (105μm – 700μm)

Copper Weight (Inner Layers):

1oz – 20oz (stackable To 200oz)

Current Capacity:

>100A (design Dependent)

Surface Finish:

ENIG, HASL (lead-free), OSP, Immersion Tin

Material Options:

Rogers (4000/3000 Series), PTFE, Arlon, Nelco, Taconic

Frequency Range:

1GHz – 100GHz

Product Description

RF Microwave Mixed‑Dielectric High‑Frequency PCB

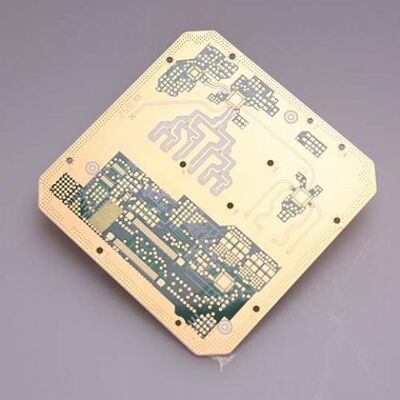

This mixed‑dielectric high‑frequency PCB adopts hybrid lamination technology, combining Rogers‑series high‑frequency RF substrate and FR‑4 material. It is equipped with precision micro‑strip resonant transmission lines for millimeter‑wave signal processing, large solid‑copper ground planes, impedance‑controlled traces, as well as dense BGA pads and SMD component pads. Designed with irregular outline, alignment holes and tooling holes for convenient module assembly. The PCB delivers stable Dk/Df dielectric performance across microwave and millimeter‑wave frequency bands.

Typical Applications

Millimeter‑wave radar modules, RF transceiver units, microwave sensing, wireless communication systems
