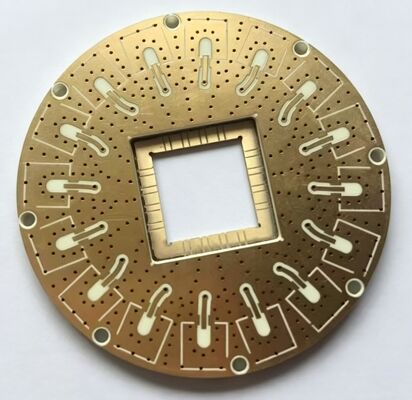

Rogers PCB

RF & Microwave High-Frequency PCB | Rogers High-Performance PCB

We specialize in the production of high-frequency PCBs, including Rogers PCB, PTFE (Teflon) PCB, ceramic substrate PCB, and FR4 hybrid laminated PCB. Engineered for professional RF and microwave signal transmission equipment, our PCBs feature stable dielectric constant, ultra-low dielectric loss, and precise impedance control. They support stable operation up to 40 GHz and above, widely applied in wireless communication, radar systems, satellite equipment, antenna systems, and RF sensing fields.

1. Core Product Advantages

• Stable Performance & Ultra-Low High-Frequency Loss: Equipped with stable Dk value and extremely low Df factor, minimizing high-frequency signal transmission loss and ensuring outstanding signal consistency, ideal for long-term stable operation of high-precision RF equipment.

• Precision Impedance Control: Supports high-precision impedance tolerance of ±5% or better, fully meeting impedance matching requirements for high-speed signals, differential signals and RF microwave circuits. Professional impedance simulation and stack-up design assistance are available.

• Multi-Material Hybrid Lamination Customization: Supports Rogers + FR4 hybrid lamination, pure high-frequency substrate, and multi-layer hybrid structures. Balancing premium electrical performance and competitive cost to fit diverse project demands.

• Flexible MOQ & Reliable Lead Time: Supports prototype orders starting from 1 PCS, covering small-batch trial production and mass production. Standard lead time is 5–15 working days, with rush order service available to meet urgent project schedules.

2. Technical Specifications

Available Materials: Full series Rogers substrates, PTFE (Teflon), ceramic substrates, FR4 hybrid materials

Layer Count: 1–16 layers

Board Thickness: 0.1mm – 3.0mm

Circuit Precision: Minimum trace width 0.05mm with mature fine-line processing technology

Impedance Accuracy: ±5% or higher customized precision

Surface Finishes: ENIG, Immersion Silver, HASL, Immersion Gold and more optional processes

Operating Frequency: Supports high-frequency and microwave applications up to 40 GHz and higher

3. Production Capacity & Service Support

Monthly Capacity: Up to 20,000 square meters, sufficient production capacity for large-volume high-frequency PCB orders with stable quality control.

MOQ: 1 PCS for prototype and customized small-batch orders

Lead Time: 5–15 working days for standard orders; rush production supported for urgent demands

Price Policy: All products are quoted customized based on Gerber files, materials, layer counts and technical requirements. Prices are negotiable.

4. Professional Packaging Solution

All high-frequency PCBs adopt standard industrial packaging: anti-static bag processing, vacuum sealing with desiccant and humidity indicator card, and outer carton reinforcement. This professional packaging effectively prevents static damage, oxidation and moisture erosion during international transportation, fully protecting PCB electrical performance.

5. Wide Application Fields

Our high-frequency PCBs are widely used in wireless communication devices, microwave RF equipment, radar systems, satellite facilities, base station antennas, RF sensors, automotive high-frequency devices, high-speed signal control equipment and other high-end precision industries.

We provide one-stop customized PCB manufacturing services according to your Gerber files, technical parameters and project solutions. Welcome global enterprises and manufacturers for consultation and cooperation!
