6layer Rigid‑Flex PCB

Quality 6layer Rigid‑Flex PCB factory
Quality 6layer Rigid‑Flex PCB factory

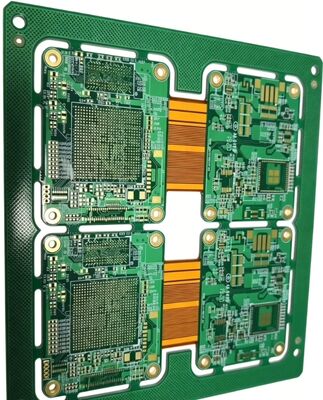

6layer Rigid‑Flex PCB

Key Attributes
Brand Name: JQPCB
Model Number: 6layer Rigid‑Flex PCB
Place of Origin: China
Certification: GB/T 19001-2016/IS0 9001:2015
Minimum Order Quantity: 1PCS
Price: negotiate
Supply Ability: 20000 Quadratmeter / Monat
Delivery Time: 5-15 Werktage, Eilbestellung möglich
Payment Terms: L/C,D/A,D/P,T/T
Standard Packaging: Vakuumverpackung + Antistatikbeutel, Trockenmittel, Temperaturanzeigekarte, Karton

Product Summary

6 Layer Rigid-Flex PCB with flexible connection, space-saving bendable design for industrial control, automotive and medical applications. Custom stack-up, controlled impedance, high reliability. JQPCB custom fabrication per Gerber file.

Product Custom Attributes

Material:
FR4+FPC
Flexibility:
High; Allows Bending And Folding
Rigid Layers:
FR4 Or Other Rigid Materials
Applications:
Wearables, Aerospace, Medical Devices, Consumer Electronics
Minimum Trace Spacing:
As Low As 3 Mil (0.075mm)
Minimum Trace Width:
As Low As 3 Mil (0.075mm)
Surface Finish:
HASL, ENIG, OSP, Immersion Silver, Etc.
Electrical Performance:
Low Signal Loss, High Reliability
Flex Material:
Polyimide (PI / Kapton) With RA Copper
Via Type:
Through-hole, Blind, Buried, Microvias
Surface Finish Options:
ENEPIG, Hard Gold (30-50µin), ENIG
Cost:
Higher Than Standard Rigid Or Flexible PCBs Due To Complexity
Layer Configuration:
4 – 28 Layers
Flex Layers:
Polyimide Or Polyester Film
Product Description

6 Layer Rigid-Flex PCB

6 Layer Rigid-Flex PCB is a hybrid printed circuit board that combines rigid PCB boards and flexible circuits into one single assembly. The flexible section connects different rigid areas, allowing the board to bend and fold into 3D structures, which greatly saves internal space and improves overall reliability.

Key Features

  • 6-layer stack-up with flexible connection area
  • Bendable design supports 3D assembly and dynamic flexing
  • Space saving: replaces multiple boards and wiring harnesses
  • High reliability: fewer connectors and solder joints, lower failure rate
  • Controlled impedance available for high-speed signal transmission
  • Custom stack-up, materials and surface finish supported

Applications

  • Industrial control modules & instruments
  • Automotive electronics (lighting, sensors, control units)
  • Medical devices (portable & monitoring equipment)
  • Consumer electronics with folding structures
  • Battery management systems (BMS)

Technical Capability

Item Capability
Layer count 6 layers (custom available)
Material FR4, Rogers, PI flex material
Min trace/space 4/4 mil (custom finer)
Surface finish ENIG, HASL, OSP, Hard Gold
Quality control AOI, E-test, impedance test before shipment

Why Choose JQPCB

JQPCB specializes in rigid-flex PCB manufacturing with strict quality control and competitive pricing. We support custom fabrication based on your Gerber files, from prototype to mass production.

Send us your Gerber files and specifications to get a competitive quotation today.
